Profile Series

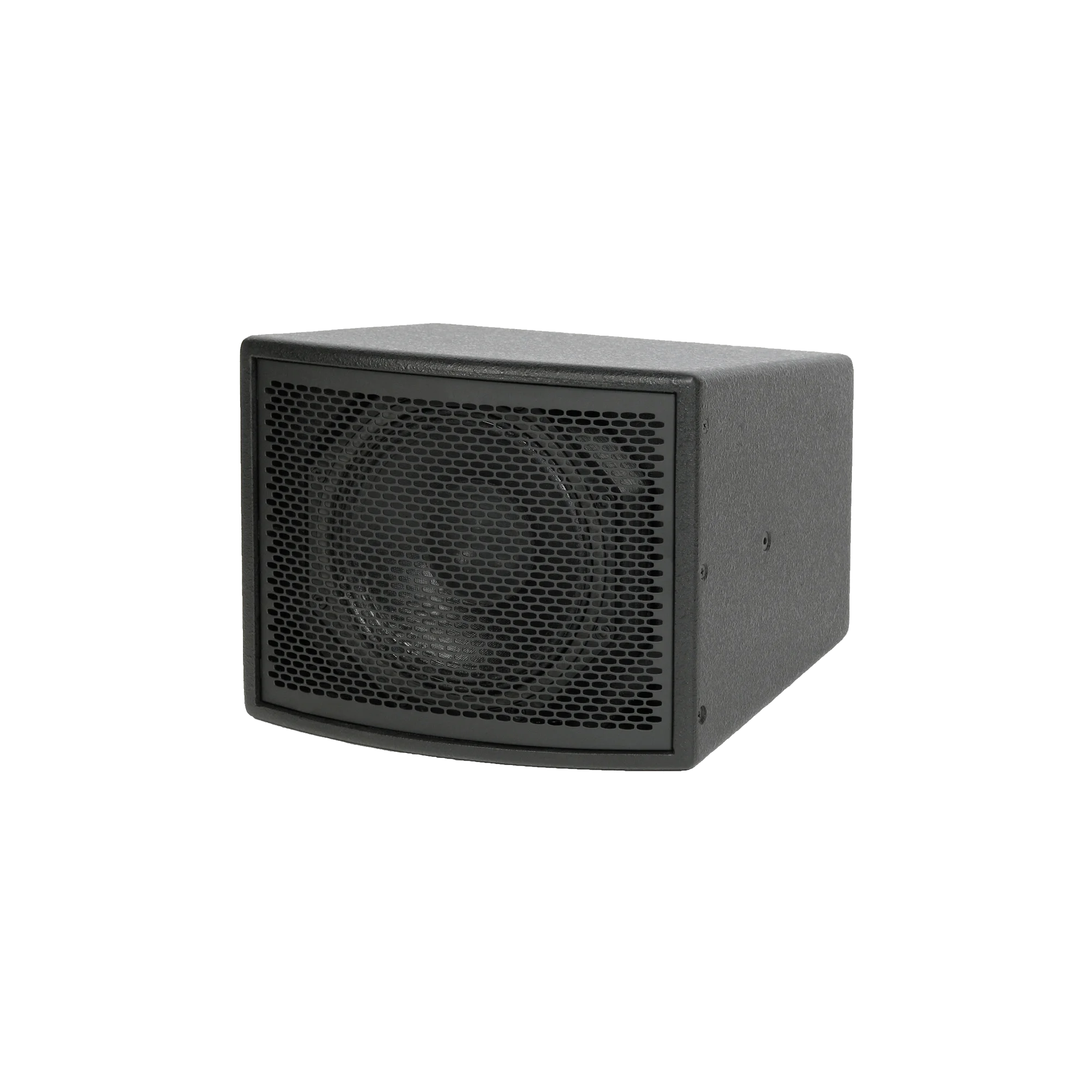

Ultra-compact, 2-way coaxial system with very wide dispersion; an excellent option where high SPL is required but extremely limited space is available. Low frequency extension to below 100 Hz enables it to integrate well with subwoofers, and at 16 ohms, the P is an ideal choice for low impedance distributed systems where a high loudspeaker-to-amplifier ratio is desirable.

Specifications

The Prophile M is a bi-amplified, 3-way coaxial loudspeaker that provides the output and pattern control of two 12 inch transducers in an enclosure size that would typically house a conventional 2-way system. The M’s dedicated low frequency transducer was selected to provide maximum mid bass impact, and the coaxial driver’s conical horn is ideal for the wide by wide coverage requirements of near field applications. The ultra-low profile, horizontally-oriented enclosure may be mounted close to ceilings, in front of balcony fascias, or along a stage front with minimal effect on sight lines. Fulcrum Acoustic’s TQ™ processing is an integral part of the M design. Sound, innovative acoustical design combined with state of the art digital processing leads to exceptional clarity and precise transient response, even at very high sound pressure levels. The required digital signal processing can be provided by one of many supported platforms. The M is an excellent option any time visceral impact and/or high SPL is needed from a package less than 40 centimeters tall. In addition, its coaxial design gives it the ability to provide a stable, high fidelity image at close range. This makes it the perfect choice for live reinforcement or dance club systems, high intensity DJ monitors, A/V screening rooms, high output fill systems, and more.

Specifications

The Prophile™ S coaxial loudspeaker provides the output capability of a dual 8 inch loudspeaker in an enclosure size typically associated with a single 8 inch, 2-way system. The S’s coaxial driver gives it the ability to provide a stable, high fidelity image at close range, and its dedicated low frequency transducer provides additional mid bass impact. Its horizontal orientation, small vertical dimension, and trapezoidal shape allow it to be positioned extremely close to ceilings and under balconies. The S’s low profile also makes it very useful as a front fill system when placed on the edge of or installed into a stage apron. Fulcrum Acoustic’s TQ™ processing is an integral part of the S design. Sound, innovative acoustical design combined with state of the art digital processing leads to exceptional clarity and precise transient response, even at very high sound pressure levels. The required digital signal processing can be provided by one of many supported platforms. The S is an excellent option any time limited space is available. Its high efficiency results in impressive levels, and its 100° x 100° coverage and coaxial design make it especially effective in close quarters. Low frequency extension to 80 Hz allows the S to provide impressive impact and enables it to integrate well with subwoofers. This makes it an ideal choice for small live reinforcement or dance club systems, high intensity DJ monitors, A/V screening rooms, high output fill systems, and more.

Specifications

The Prophile L is a bi-amplified, 3-way coaxial loudspeaker that provides the output and pattern control of two 15 inch transducers in an enclosure size that would typically house a conventional 2-way system. The L’s dedicated low frequency transducer was selected to provide maximum mid bass impact, and the coaxial driver’s conical horn is ideal for the wide by wide coverage requirements of near field applications. The ultra-low profile, horizontally-oriented enclosure may be mounted close to ceilings, in front of balcony fascias, or along a stage front with minimal effect on sight lines. Fulcrum Acoustic’s TQ™ processing is an integral part of the L design. Sound, innovative acoustical design combined with state of the art digital processing leads to exceptional clarity and precise transient response, even at very high sound pressure levels. The required digital signal processing can be provided by one of many supported platforms. The L is an excellent option any time visceral impact and/or high SPL is needed from a package less than 48 centimeters tall. In addition, its coaxial design gives it the ability to provide a stable, high fidelity image at close range. This makes it the perfect choice for live reinforcement or dance club systems, high intensity DJ monitors, A/V screening rooms, high output fill systems, and more.

Specifications
